- Place of Origin: qingdao
- Brand Name: tuoke
- Model Number: UM6800

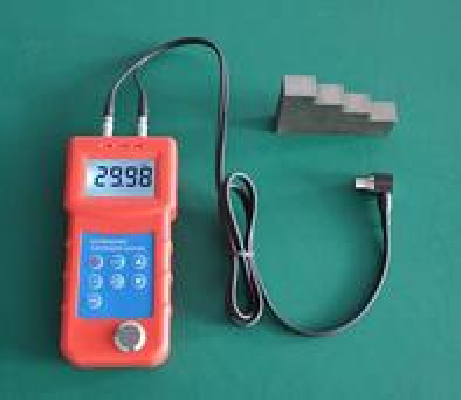

Application of UM6800 ultrasonic thickness measuring instrument
It can make accurate measurement of various materials and various kinds of machining parts, the production equipment of all kinds of piping and pressure vessel monitoring, monitoring them in the process of using corroded thinning degree.
We are widely used in petroleum, chemical industry, power plant, metallurgy, shipbuilding, aviation, aerospace, machinery manufacturing and chemical equipment, pressure vessels, boilers, tanks and other fields.
It can measure the material: steel, steel, aluminum, brass, zinc, quartz glass, polyethylene, gray cast iron, ductile iron, ceramic, plastic conductor and any other ultrasonic thickness.
The large screen liquid crystal display with high brightness and number with backlight, convenient to use in dark environment.
The British public free conversion.
The coupling of prompts.
A low battery indicator function.
The automatic shutdown of power saving function.
The known thickness can be measured the speed of sound, in order to improve the measurement accuracy.
UM6800 ultrasonic thickness measuring instrument technical parameters
Display mode: 4 bit with backlight LCD LCD display
Measuring range (metric / inch):
1 ~ 300mm (determined by the probe, special requirements can be customized)
0.06-11.8inch
Display accuracy: 0.01mm
Adjustable speed range: 500-9000m/s
Material code: 11 groups
Use environment:
Temperature: 0-40
Humidity: less than 90%RH
Ambient environment without strong vibration, no strong magnetic field, no corrosive medium and severe dust.
Accuracy: (0.5%n 0.1)
Power supply: 5 section 4 battery
Volume: 24mm * 60MM * 140mm
Weight: 185g
Standard configuration
Host
One
5M with 8 sensors
One
Coupling agent
One
Instructions
One
Portable box
One
Calibration block
1 (host)
option
High temperature probe 300
4-100mm
Small diameter probe with 6 5M
1-50mM
Cast iron with 10 2M probe
3-40mm
Step calibration block
20-50mm
